Arduino Esplora Temperature Sensor

This sketch shows you how to read the Esplora’s temperature sensor. You can read the temperature sensor in Farhenheit or Celsius.

Circuit

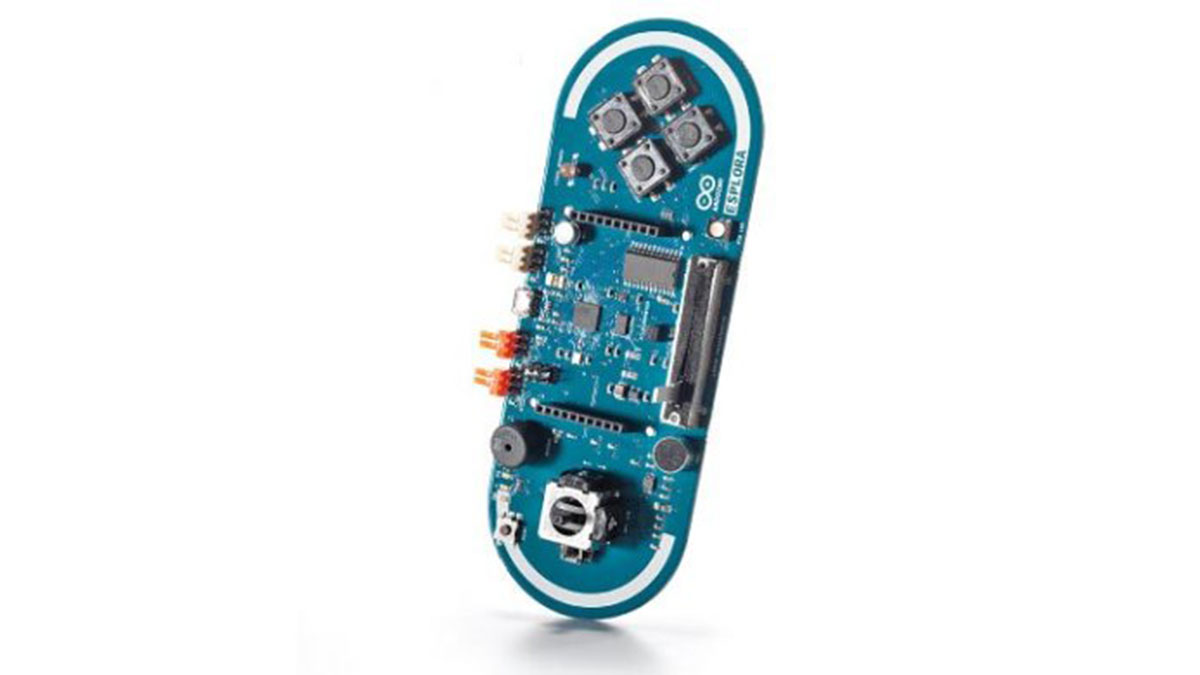

Only your Arduino Esplora is needed for this example. Connect the Esplora to your computer with a USB cable and open the Arduino’s Serial Monitor.

Temperature to send data to your computer from the Esplora

Code

To send data to your computer, you need to open a serial connection. use Serial.begin() to open a serial port at 9600 baud on the Esplora.

The Esplora.readTemperature() function gets the value from the temperature sensor. It will give you the temperature in degrees Celsius or degrees Fahrenheit, depending on your choice. It takes one parameter, DEGREES_C for Celsius or DEGREES_F for Fahrenheit:

Temperature is: 22 degrees Celsius, or 72 degrees Fahrenheit.
     Fahrenheit = (9/5 * Celsius) + 32
Temperature is: 21 degrees Celsius, or 72 degrees Fahrenheit.
     Fahrenheit = (9/5 * Celsius) + 32

/*

Esplora Temperature Sensor

This sketch shows you how to read the Esplora’s temperature sensor

You can read the temperature sensor in Farhenheit or Celsius.

Created on 22 Dec 2012

by Tom Igoe

This example is in the public domain.

*/
#include <Esplora.h>

void setup() {

Serial.begin(9600); // initialize serial communications with your computer
}
