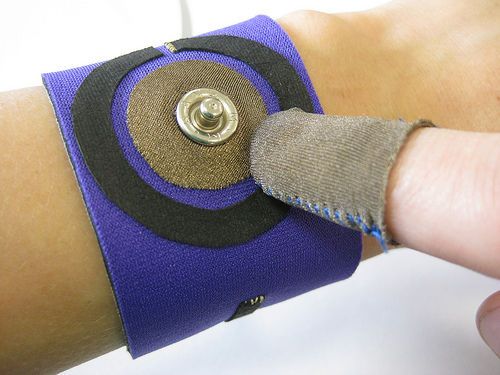

The Time Sensing Bracelet is a fabric potentiometer. You select your desired time of day by making contact in the corresponding position on your wrist – where your watch would normally be.
There is no point to it but fun.
Update: Using some wire wrapped around the central popper to make contact with the resistive ring (circular potentiometer). Unfortunately (though cool too) the Eexonyx fabric is pressure sensitive, thus its resistance varies also on the pressure applied, not only on the position of contact.
Plus, the contact between the wire and Eeonyx is not stable enough. But this is a design issue that can be solved:-)
Step 1: Materials and Tools
- Eeonyx piezo-resistive SL-PA coated fabric RL-4-139-4 from http://www.eeonyx.com
also see http://cnmat.berkeley.edu/resource/eontex_conductive_fabric
- Conductive thread from http://members.shaw.ca/ubik/thread/use.html
also see http://cnmat.berkeley.edu/resource/conductive_thread
- Neoprene from www.sedochemicals.com
- Stretch conductive fabric from http://www.lessemf.com
also see http://cnmat.berkeley.edu/resource/stretch_conductive_fabric
- Fusible interfacing from local fabric store or
also see http://www.shoppellon.com
-
- Male and female headers from Sparkfun http://www.sparkfun.com/
- Ribbon cable with min. 8 wires
- Solderable Perfboard with copper line pattern from All Electronics http://www.allelectronics.com/
- Arduino USB board from Sparkfun http://www.sparkfun.com/
- Velcro
- Regular thread
TOOLS
-
- Fabric scissors
- Sewing needle
- Iron
- Soldering station (iron, helping hands, solder)
- Knife for cutting perfboard
- File for filing edges of perfboard
- Wire cutters and strippers
- Pliers
SOFTWARE
- Arduino software free for download from http://www.arduino.cc/
- Processing software free for download from http://processing.org/
Step 2: Trace and cut stencils

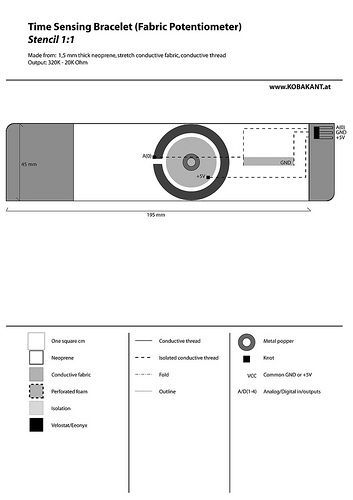

Print out the stencil (see illustration) and trace it to a piece of neoprene. Trace the circle onto a piece of stretch conductive fabric that has fusible interfacing adhered to one side. Trace the disconnected ring and the small rectangle to a piece of Eeonyx fabric that has fusible interfacing adhered to one side.
Cut out all the pieces
Step 3: Fusing
Lay the circle, ring and rectangle into place and fuse with an iron.
!Careful: the Eeonyx fabric will stick to your iron, be sure to put a piece of wax paper in between.
Step 4: Soldering
Bend the legs of three male headers if you don’t have any ready bent ones. Solder them to one of the corners of the perfboard.
