Temperature Displayed on 4 Digit 7 segment using Arduino

Arduino Temperature Displayed

In this project I’ll display the temperature in a 4 digit 7 segment display (common anode).
The sensor is the cheapest you can find so actually the temperature changes pretty easily which makes the display to show always different temperatures.

Arduino Temperature Displayed

But the idea is to apply this code to other projects with 7 segment displays that I might do later. if you want to learn a bit more of 7 segment displays you can read more at this post I’ve made.

This project is great to learn more about:

  • Reading sensors (in this case temperature)
  • 7 segment displays (4 digit 7 segment displays)
  • 8 bit Shift Registers (74HC595)
  • Pratice wiring

and for more project and tips you can also check my website:
You can see this project working right now:


Step 2: Schematics

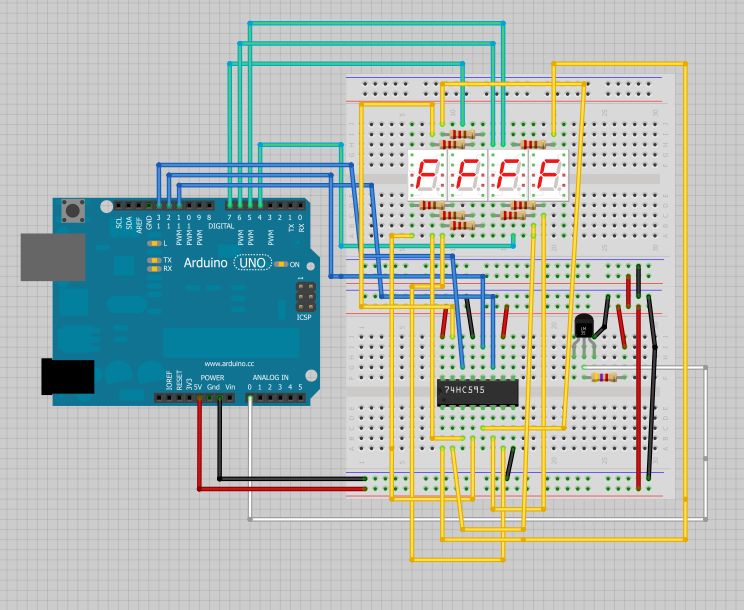

Arduino Temperature Displayed schematic

I think it’s a bit hard to follow the yellow connections with this schematic.

Read more: Temperature Displayed on 4 Digit 7 segment using Arduino
